LED TV Wall Mount in Singapore: Installation and Best Practices

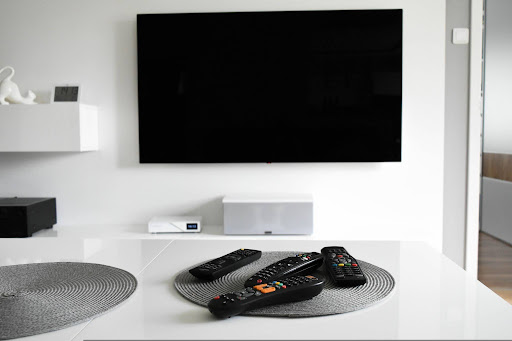

A modern LED television is thin, light, and surprisingly fragile. Setting it on a TV console invites two problems: a child or pet can pull it down, and you lose valuable floor space. Wall mounting solves both issues. In a typical Singapore HDB living room, an LED TV wall mount installation lifts the screen to an ideal viewing height, clears the area below for other uses, and secures the TV against accidental tip‑overs. But mounting an LED TV on a HDB wall requires specific knowledge. You need to know where you can drill, which bracket fits your screen, and how to anchor the mount safely. This article delivers that knowledge in plain terms.

HDB Rules for Wall Drilling: What You Must Respect

The Housing & Development Board does not require a permit for mounting a TV, but they do enforce strict rules on drilling. You cannot drill into structural beams, columns, or any reinforced concrete wall that forms the building’s primary support. Damaging these elements is a serious offence. HDB also prohibits drilling into external walls, parapet walls, and false ceilings. For all drilling, restrict noisy work to weekdays between 9am and 5pm. No drilling on Saturdays, Sundays, or public holidays.

For newer flats with Ferrolite lightweight concrete walls, HDB sets a maximum drill depth of 40mm. Exceeding this depth risks breaching the wall into common property or hitting concealed conduits. Always check your flat’s floor plan on the HDB website or MyNiceHome portal before planning any LED TV wall mount installation.

Wall Types in Singapore Homes and Their Mounting Requirements

Concrete load‑bearing walls offer the strongest hold. Most HDB living rooms use concrete walls. Drilling into concrete requires a hammer drill with carbide‑tipped masonry bits. Use expansion anchors or concrete screws rated for the TV’s weight. Concrete walls rarely hide electrical wires at random positions, but you should still scan with a detector.

Drywall partition walls appear in many BTO bedrooms and some living rooms. HDB rates drywalls to support up to 25kg per mounting point, but only with the correct hollow‑wall anchors such as toggle bolts. Never screw directly into drywall without anchors. You must also locate wall studs behind the drywall. For heavier TVs, anchor the LED wall mount into the studs themselves.

Brick walls exist in older HDB flats (pre‑1990). Brick holds well but cracks easily if you drill too aggressively. Use a masonry bit at low speed and insert wall plugs specifically designed for brick. Do not over‑tighten screws.

Choosing the Correct LED TV Wall Mount Bracket

Selecting the right led tv wall mount bracket is not a guessing game. You need to match three technical specifications: VESA pattern, weight capacity, and mount type.

VESA (Video Electronics Standards Association) defines the distance between the four screw holes on the back of your LED TV. Common patterns include 200x200mm for 32‑inch models, 300x300mm for 43 inch screens, and 400x400mm or 600x400mm for 65 inch televisions. Check your TV’s user manual or measure the hole spacing yourself. Any LED TV wall mount bracket you purchase must list a VESA range that includes your TV’s exact pattern. A mismatch means the bracket will not attach.

Weight capacity is non‑negotiable. A 43 inch led tv wall mount bracket typically supports up to 25kg, which covers most 43‑inch LED TVs (usually 8‑12kg). A 65 inch LED TV wall mount bracket must support at least 35kg, as larger screens can weigh 20‑30kg. Always choose a bracket rated for at least 20% above your TV’s actual weight.

Mount types come in three varieties. Fixed brackets hold the TV flat against the wall, only a few centimetres from the surface. They look clean but offer no angle adjustment. Tilting brackets allow you to angle the screen downward, useful for high placements. Full‑motion brackets pull out, swivel, and tilt. They give the most flexibility but put higher stress on the wall.

Tools You Need for an LED TV Wall Mount Installation

Do not start drilling without these items. A hammer drill (for concrete or brick) or a standard power drill (for drywall). Masonry drill bits if you have concrete or brick. A stud finder with AC wire detection – this is mandatory. A spirit level at least 600mm long. A measuring tape and a pencil. Wall plugs (anchors) appropriate for your wall type. A socket wrench or screwdriver. Safety goggles and a dust mask. Concrete drilling creates silica dust, which is harmful.

Step‑by‑Step Guide to LED TV Wall Mount Installation

StepDetails
Step 1: Select the mounting heightSit in your primary viewing spot. The centre of the TV screen should sit at your eye level when you look straight ahead. For most living rooms, this places the centre 42 to 48 inches from the floor. Avoid mounting opposite a window because glare will ruin your viewing experience. Keep the TV at least 150mm away from any heat source.
Step 2: Scan the wall for hazardsTurn on your stud finder with wire detection mode. Slowly scan the entire area where you plan to mount the TV. Mark any detected electrical cables, water pipes, or gas lines with a pencil. If you find wiring in the centre of your chosen location, shift the mount left or right by at least 50mm. Striking a live wire causes a short circuit and can start a fire.
Step 3: Locate wall studs (for drywall)For drywall partitions, you must anchor the led wall mount into at least two wall studs. Use the stud finder to mark the centre of each stud. Studs in HDB drywalls typically sit 400mm or 600mm apart. If the TV width does not allow both studs to align with the mount’s wall plate, you need a mounting plate that spans across multiple studs. Never rely on drywall anchors alone for a TV heavier than 15kg.
Step 4: Mark the drill pointsHold the wall plate of your led tv wall mount bracket against the wall at the marked height. Use the spirit level to ensure the plate is perfectly horizontal. Mark each drill hole with a pencil through the plate’s openings. Double‑check the distance between marks against the bracket’s specification sheet.
Step 5: Drill pilot holesSet your drill to the correct mode. For concrete or brick, engage hammer mode and use a masonry bit one size smaller than the wall plug. Drill straight and steady. The hole depth should equal the length of the wall plug plus 5mm. For drywall, use standard twist mode and a bit that matches the anchor size. Drill only through the drywall.
Step 6: Insert wall anchorsTap the wall plugs into the holes using a hammer. They should sit flush with the wall surface. For drywall toggle bolts, fold the spring wings and push them through the hole until the wings open behind the wall. Pull back gently to seat the wings against the inner surface.
Step 7: Attach the wall platePosition the wall plate over the holes. Insert screws through the plate and drive them into the anchors. Tighten firmly but stop when the screw head contacts the plate. Overtightening strips threads in concrete anchors or crushes drywall. Recheck the plate with your spirit level.
Step 8: Prepare the TVLay the TV face‑down on a soft blanket or foam mat on a flat surface. Locate the four VESA mounting holes. Attach the mounting brackets or vertical rails to the TV using the screws provided in your led tv wall mount bracket kit. Use the correct screw length. Screws that are too long damage internal circuits. Most kits include spacers, so use them if the TV has a curved back or recessed holes. For a 43 inch led tv wall mount, the bracket often comes with shorter screws. For a 65 inch LED TV wall mount, you typically receive longer, heavier‑duty screws.
Step 9: Hang the TVGet a second person to help lift the TV. Engage the brackets onto the wall plate. Most mounts use a hook‑and‑latch system. Push the TV downward until you hear a click or feel the lock engage. Insert any safety screws or locking pins that came with the mount. These prevent the TV from being accidentally lifted off the wall.
Step 10: Adjust and cable manageTilt or swivel the TV to your preferred viewing angle. Tighten all adjustment screws. Connect your power cord and HDMI cables. Run cables along the wall using adhesive cable clips or a plastic raceway. Do not run power cables inside the wall cavity since that requires a licensed electrician in Singapore.

Need help mounting your LED TV safely? FixFirst’s certified handymen install TVs across all HDB flats and condos in Singapore. We handle wire detection, proper stud alignment, and full safety testing for both 43-inch and 65-inch models—so your setup is secure, level, and clutter-free. Book now for a professional installation that enhances your entertainment experience!

Specific Considerations for 43‑inch and 65‑inch LED TVs

A 43 inch LED TV wall mount bracket differs from a 65 inch model in several ways. The 43‑inch bracket has a smaller wall plate, lighter construction, and typically supports VESA patterns up to 400x400mm. Weight capacity usually ranges from 20kg to 30kg. Installation on a 43‑inch TV is straightforward because the screen is light enough for a single person to lift with care.

A 65 inch LED TV wall mount bracket must be substantially stronger. The wall plate is larger, the arms are thicker, and the VESA pattern often goes up to 600x400mm. Weight capacity should be at least 40kg. You absolutely need two people to lift a 65‑inch LED TV onto the bracket. The larger screen also requires more precise levelling because any tilt becomes highly noticeable on a big screen. For a 65 inch LED TV wall mount installation, always anchor into concrete or multiple wall studs. Drywall alone cannot safely support a 65‑inch TV.

Common Mistakes That Ruin an LED TV Wall Mount Installation

Using the wrong anchors is the most frequent error. Standard plastic wall plugs from a neighbourhood hardware shop cannot hold a 20kg TV. For concrete, use sleeve anchors or lag shields. For drywall, use toggle bolts or metal snap toggles. For brick, use ribbed plastic plugs designed for brick.

Ignoring VESA compatibility leads to wasted time and money. An LED TV wall mount bracket designed for 200x200mm will not fit a TV with a 400x400mm pattern. Do not drill new holes in the TV chassis since that voids the warranty and creates dangerous stress points. Buy a bracket with an adjustable VESA plate.

Mounting on drywall without locating studs is a guaranteed failure. Drywall alone has a shear strength of only about 10kg per anchor. A 65‑inch TV creates dynamic loads when you pull or tilt it. Always anchor into studs. If your TV position does not align with studs, install a plywood backing panel across multiple studs, then mount the TV to the panel.

Over‑tightening screws cracks drywall and strips concrete anchors. Stop tightening when the screw feels snug. If you hear cracking sounds from drywall, you have gone too far. Back out the screw and use a larger anchor.

Professional LED TV Wall Mount Installation: When To Call FixFirst

You can perform an LED TV wall mount installation yourself if you own the right tools and understand your wall type. But many Singapore homeowners lack a hammer drill, a stud finder with wire detection, or the confidence to drill into a HDB wall. The consequences of a mistake are serious. Hitting a concealed wire means rewiring costs and potential fire hazard. Drilling into a structural beam triggers HDB enforcement action. A falling TV can injure someone and destroy the television itself.

Professional handymen from FixFirst bring HDB‑approved tools and know exactly which walls are safe to drill. They use calibrated wire detectors and cross‑reference with HDB’s concealed wiring maps. They complete every LED TV wall mount installation with a torque check and a safety inspection. For a 65 inch LED TV wall mount, they use two technicians as standard practice.

Conclusion

An LED TV wall mount installation transforms your living space. It secures your television, improves viewing angles, and frees up floor area in a compact Singapore home. Success depends on following HDB rules, selecting the correct LED TV wall mount bracket for your screen size, and anchoring into the right wall material with proper hardware. The step‑by‑step method above works, but only if you execute every step with care. For homeowners who want zero risk – no hidden wires hit, no structural violations, no chance of a falling TV – professional installation is the smart choice.
